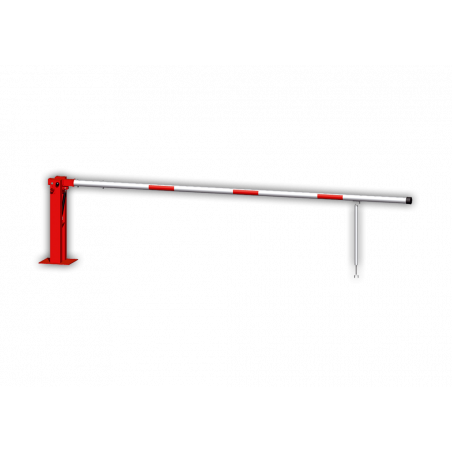

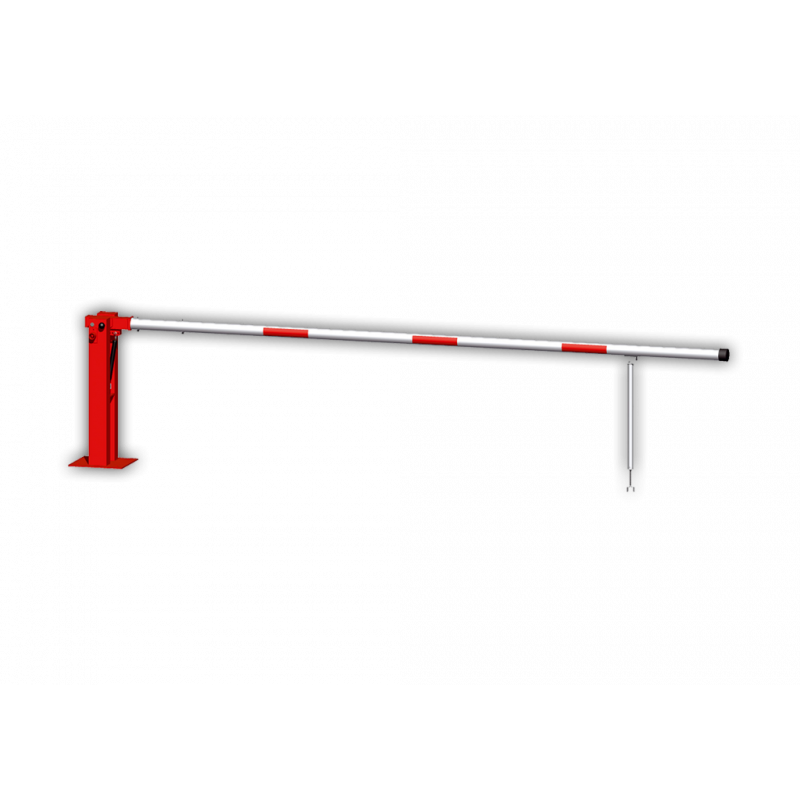

Manual barrier - road barrier

Manual barrier with gas spring and pendulum support

Main support with closure:
Steel construction 120 x 80 mm rectangular tube with base plate 360 x 360 x 8 mm, for bolting down with 4 holes Ø 20 mm for fixing anchors,

Hot-dip galvanized and red powder-coated, locking mechanism with bolts when the barrier is open and closed.

Pendulum support:
Aluminum tube with leveling foot
Barrier:
Thick-walled Ø 80 mm aluminum tube, powder-coated with red reflective stripes

The total width must always be calculated – clear width plus approx. 180 mm.

Recommended foundation dimensions:

Main support: Width 550 x 550 mm, Depth 900 mm

Delivery time approximately 3 weeks!
